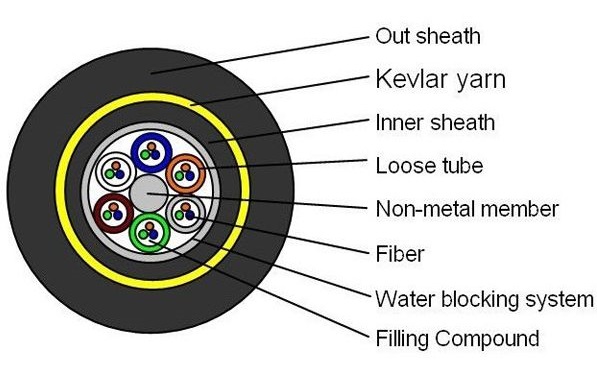

ADSS (all dielectric self supporting) fiber Optic Cable is used by electrical utility enterprises as a communications medium, installed along existed overhead transmission lines and usually sharing the same support structures as the electrical conductors. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. we make custom ADSS fiber optic cables, depending on customer specific needs for the voltage, span, fiber types, fiber core numbers and length, etc. we have single mode and multimode versions adss fiber optic cables.

ADSS fiber optic cable features
small cable Dia, light weight, 1,500m span, low attached load on tower.
Tension strength is over 90KN.
Non-metal structure, good insulation, anti-thunder.
Fine production technology, even force for aramid fiber, with superior stress flexibility.
anti gun fire.
Anti electro-corrosion.
Adapt for bad climate.
May construct without power cut, a power line failure doesn’t influence cable’s normal transfer.
loose cover GYTA cable core, non-metallic core reinforced.
Tension units are elastic modulus aramid fiber.
Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) ?25KV/m.

ADSS fiber optic cable applications:
Erect on the same pole with power line in new and old power line.
A long span
Areas of strong electric field, multi-thunder, etc
