fast Ethernet media converter,fast Ethernet media converters

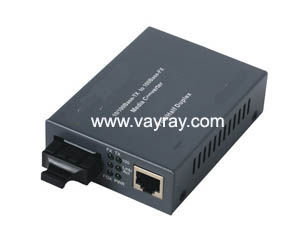

fast Ethernet media converter

The fast Ethernet media converter is used in applications where multimode fiber is installed while the converters can be used where single mode fiber cables are in use. The powerful features are as 10/100 Auto Negotiation, Auto cross over for TP port , Voltage supervisor, and support switch mode & pure converter mode. Installation of the Fast Ethernet converter is simple and. Straightforward. It is possible to protect the original investment in such devices by using a fast Ethernet media converter as a solution that is able to prolong the life of this type of equipment.
fast Ethernet media converter Features:
All Converters comply with IEEE 802.3 & 802.3u Fast Ethernet Standards
LED Indication: FX-100,FX-Link/Act,TX-100,TX-Link/Act,FDX,PWR
Provide one RJ-45 twisted pair 10/100Mbps Ethernet port and one 100BASE-Fx port
100BASE-Tx port 10M/100M and full/half duplex auto-negotiation
Voltage supervisor
External power supply
Wavelength 850nm .1310nm. 1550nm selectable
fast Ethernet media converters Specification:
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX & 100Base-FX
10/100Base-T: 1X RJ45 connector
100Base-FX: 1X SC simplex connector
Switching Method
Store and forward

Data Transfer Rate
200 Mbps-Full duplex
MAC table
1K Entries
Filtering Rate
Filt. Rate - Ethernet: 14,880 pps
Filt. Rate - Fast Ethernet: 148,800 pps
Ext. Power Supply, DC 5V, 1A
Power consumption: 5W

Typical Operation & Storage Temperature
Operation:0? ~70?
Storage Temperature: -40? ~ 85?
Humidity:5% ~ 90% non-condensing
Dimension and Weight
Size: 70 x 94 x 27mm (WxDxH)
Shipping Weight: 0.6KG
FCC Class A, CE
* For further reports, please contact us for update.
